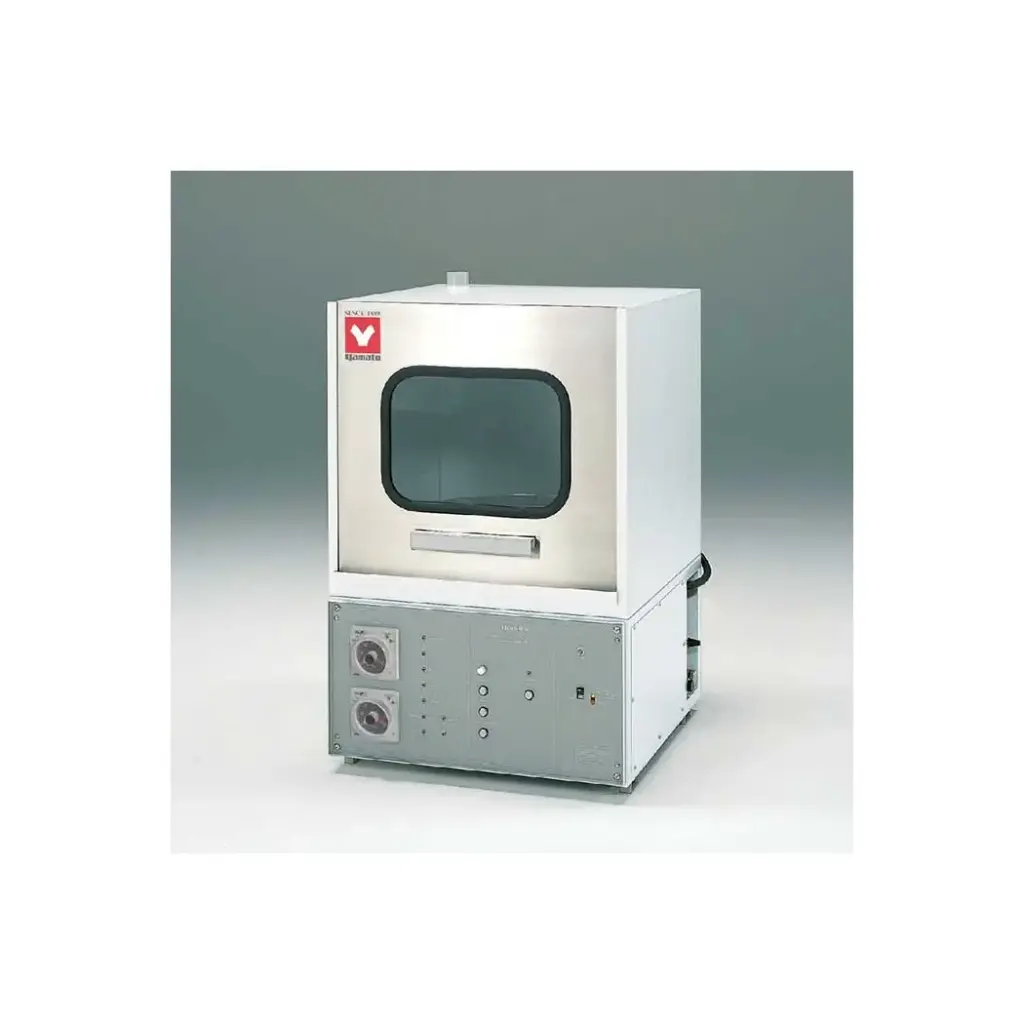

Yamato AW62 Fully-Automatic Glassware Washer

Compact and powerful automatic benchtop washer with spin table helps reduce laboratory glassware cleaning workload

This combination does not exist.

For more information please call +1 (860) 436-9221 or email us at [email protected]

Downloads:

AW62 Glassware Washer Catalog

Get the best price
for your organization today

AW62

All processes from wash to rinse are fully automatic. Each process is displayed on indicator
Final rinse (option) with purified water available
Water purifier connection is possible for pure water rinse process
Wash process and time can be set according to glassware shape and contamination level
Cleaning water temperature impacts final cleaning results. With built-in water heater, no boiler piping and water heating system are required
Powerful upward and downward two-way pressurized water jet method

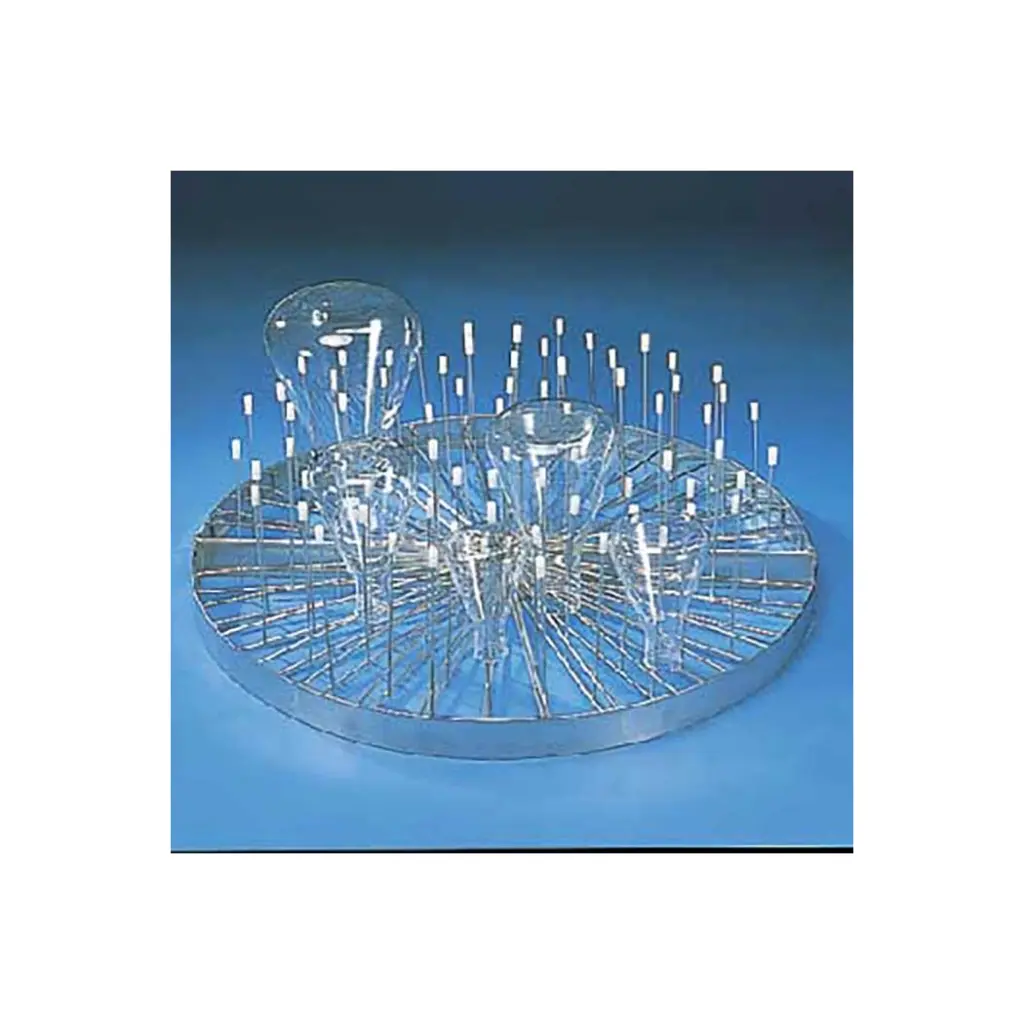

Optional jet rack is available for hard to clean targets, such as glassware with narrow neck or body

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	AW62
Cleaning method	Two direction pressurized water jet method, fixed jet nozzle
Cleaning cycle	Wash (setting range: 0~30min.)
	Rinse (setting range: 0~30min.)
	Purified water rinse (optional) when connected with water purifier, Rinse clean with 20L purified water
Water supply	Room temp. ~ 60°C
Washing water temp.	45~80°C
Water heater	Built-in heater 6kW
Supply water pressure	0.1~0.3MPa

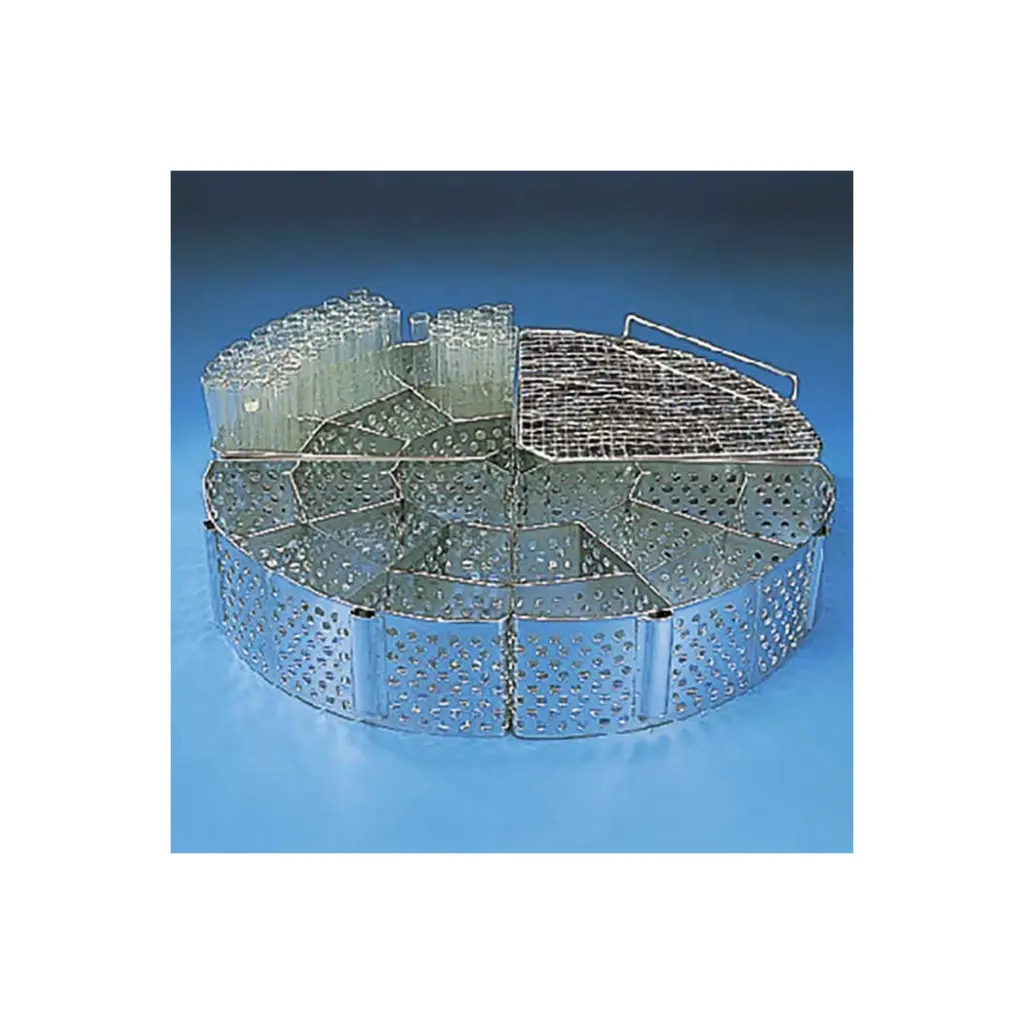

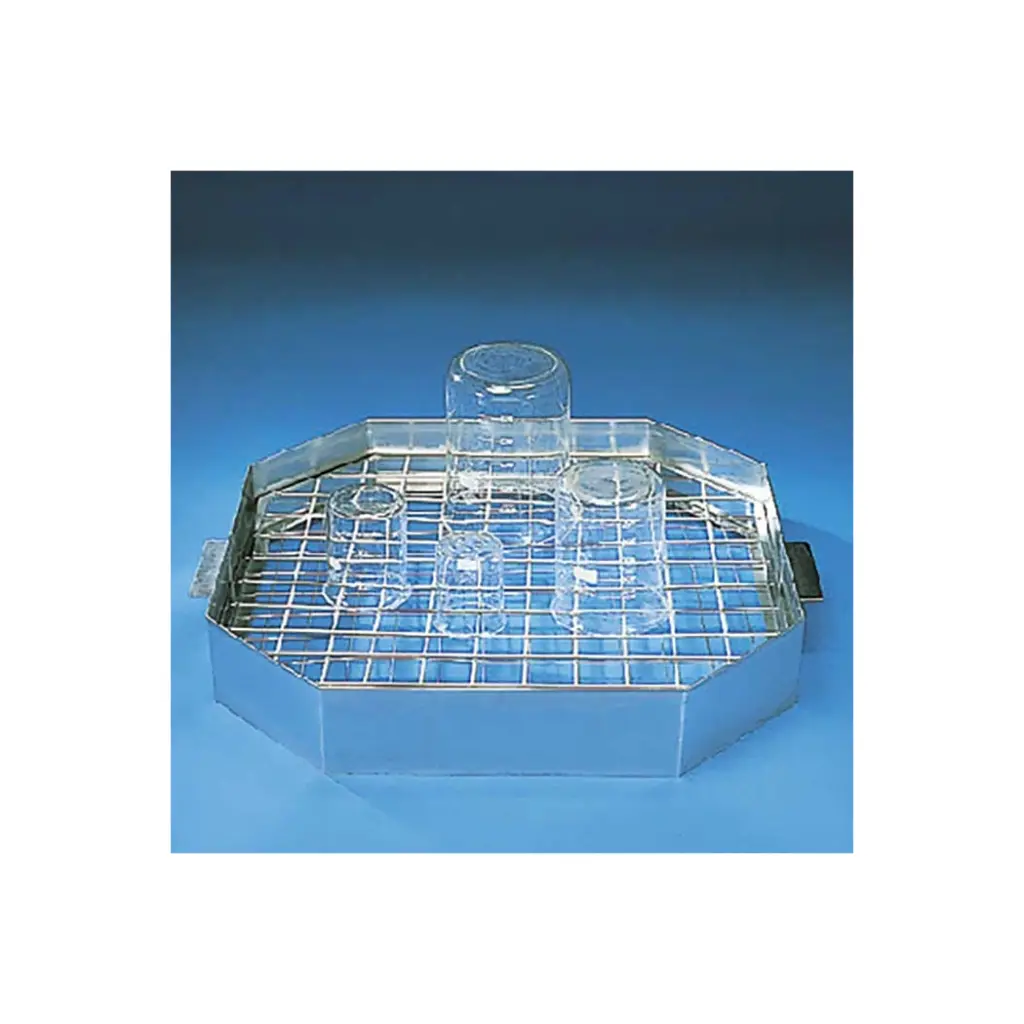

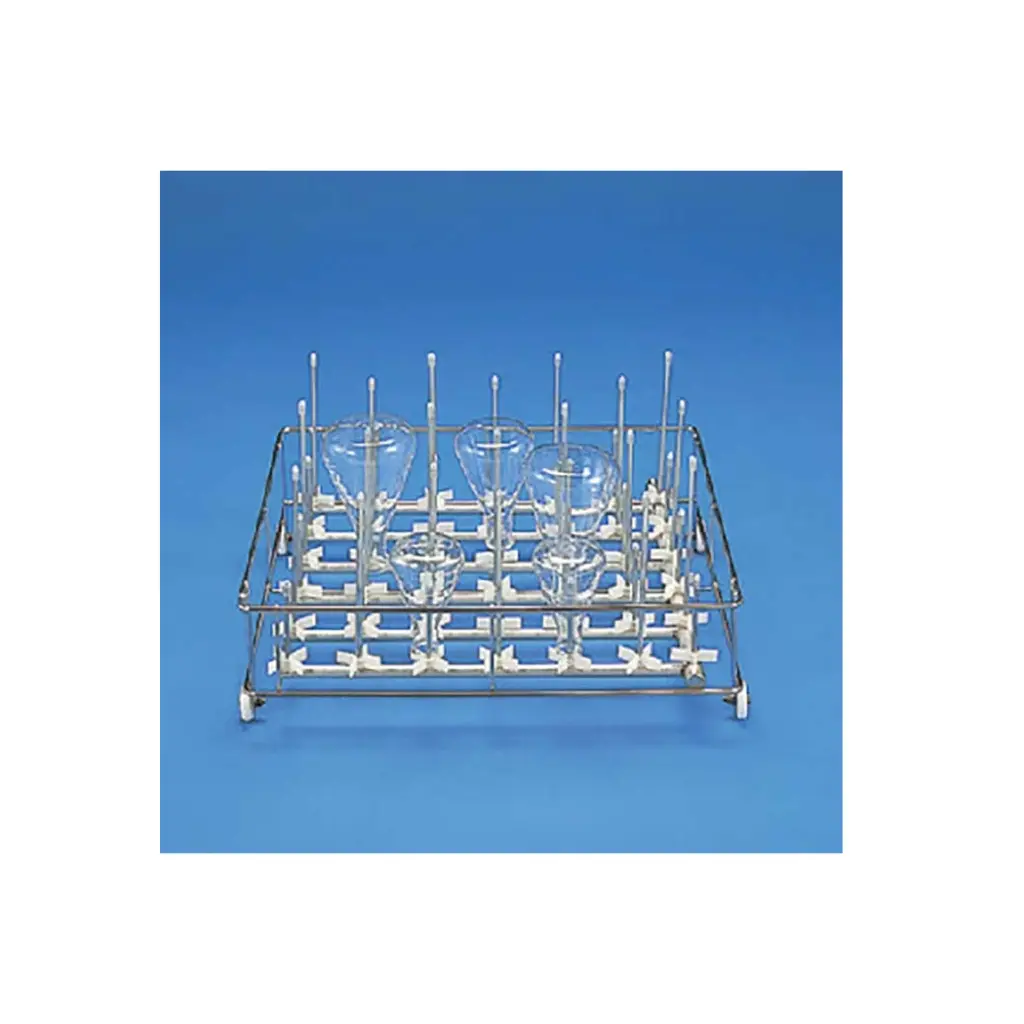

Glassware stand	Spin table (Standard), racks (optional)
Water supply	Controlled by electromagnetic valve open/close, water level adjustable by water level control switch
Water drain	Natural drainage by water level gap
Exterior material*	Chrome-free electric galvanized steel plate, chemical-resistant paint
Interior material	Stainless steel
External dimensions	W600 x D620 x H940mm
Internal dimensions	W594 x D572 x H564mm, effective height: 345mm
Spin table	Dia. 550mm (max. load bearing: 25kg)
Pump	Three phase AC220V 250W
Door	Drop down style (can stop at any position)
Weight	~90kg
Power source (50/60Hz)	Three phase AC220V 17A with external transformer
Included accessories	1 pc. water supply hose (with coupler) 2m, 1 pc. drain hose (I.D.25.4mm) 1.5m, 1 kg. phosphorus-free detergent (50ml measuring spoon 1pc.), vinyl cover, 1 pc. main jet nozzle cleaning needle, water supply unit
Consumable	Phosphorus-free detergent

* Protrusions not included.
