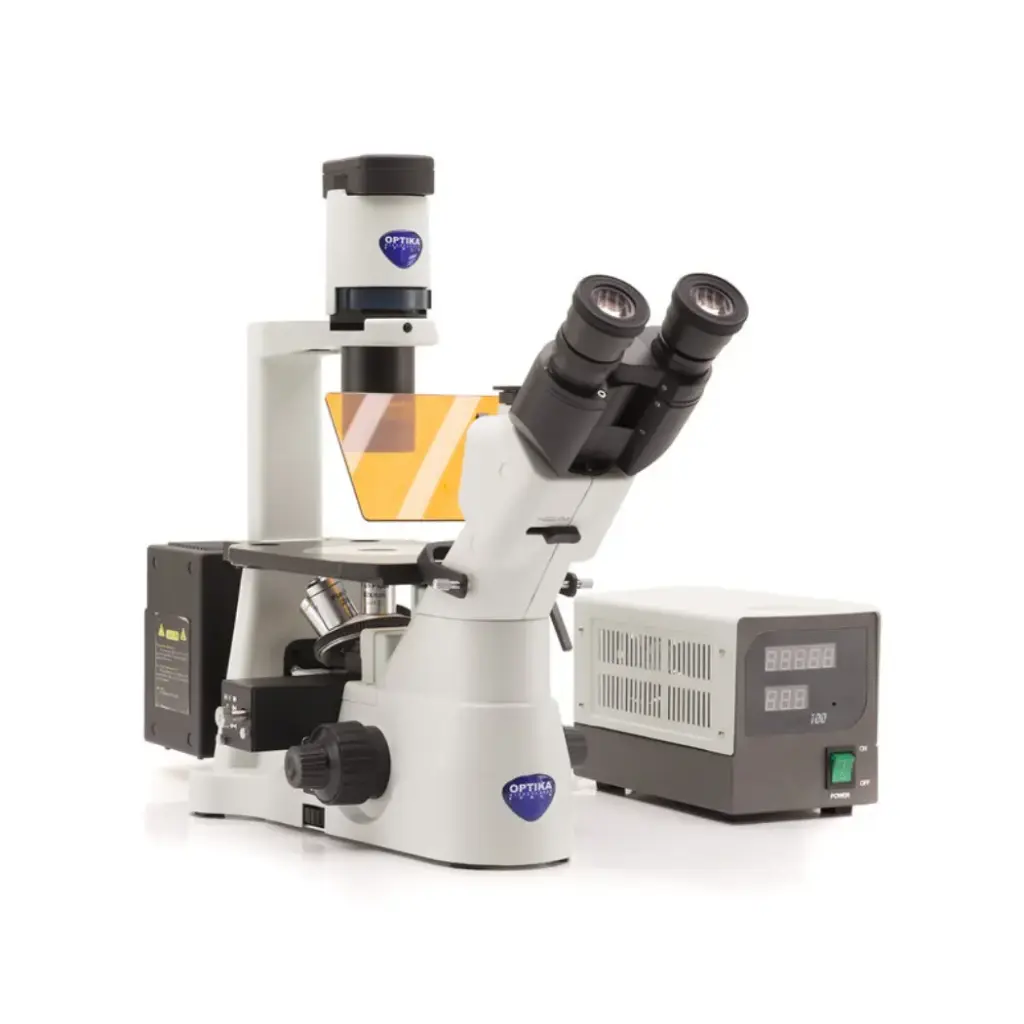

IM-3 Inverted HBO fluorescence microscope, 400x, IOS LWD PLAN, B&G filter set

Specification

Observation mode: Brightfield, HBO fluorescence.

Epi-illumination and filter: HBO 100 W high pressure mercury lamp. 4-position filter holder; blue & green included.

Head: Trinocular (2-position 100/0, 0/100), 45° inclined.

Interpupillary distance: Adjustable between 50 and 75 mm.

Dioptric adjustment: On the left eyepiece tube.

Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.

Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.

Objectives:

• IOS LWD U-PLAN F 10x/0.30
• IOS LWD U-PLAN F 20x/0.45
• IOS LWD U-PLAN F 40x/0.65

All with anti-fungus treatment.

Specimen stage: Fixed stage, 250x160 mm, with glass and metal stage inserts.

Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.

Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. Removable to extend the working distance up to 150 mm.

Transmitted illumination: X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/6Vdc external power supply.

Standard filtersets

• Name: B (Blue)
  • Excitation filter (nm): 460–490
  • Dichroic mirror cut-off (nm): 500
  • Emission filter (nm): 520LP
  • Name: G (Green)
  • Excitation filter (nm): 527 – 553
  • Dichroic mirror cut-off (nm): 565
  • Emission filter (nm): 575LP
    • Additional filterset (optional)
• Name: V (Violet)
  • Excitation filter (nm): 390-420
  • Dichroic mirror cut-off (nm): 440
  • Emission filter (nm): 455LP
  • Name: UV Excitation filter (nm): 325-375
  • Dichroic mirror cut-off (nm): 415
    • Emission filter (nm): 435LP
