Magnetic Drives

Magnetic Drives

$ 1,871.00 1871.0 USD $ 1,871.00 In stock
In Stock Free Shipping

$ 0.00

Model

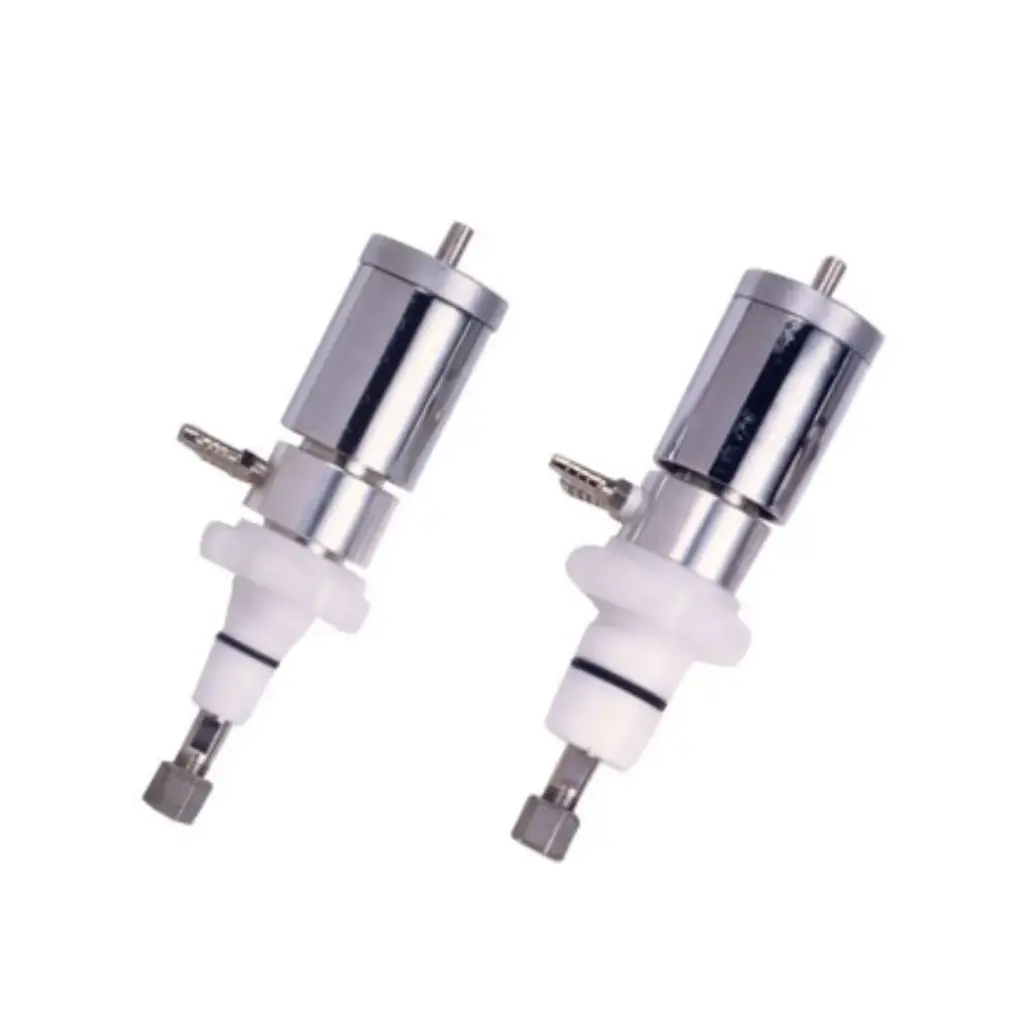

- [BEA511001] Magnetic Drive MD-T6-24 (Ground joint 24/40) + $ 1,871.00
- [BEA511002] Magnetic Drive MD-T6-29 (Ground joint 29/42) + $ 1,913.00
- [BEA511003] Magnetic Drive MD-T6-35 (Ground joint 34/45) + $ 1,997.00

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at [email protected]

Features:

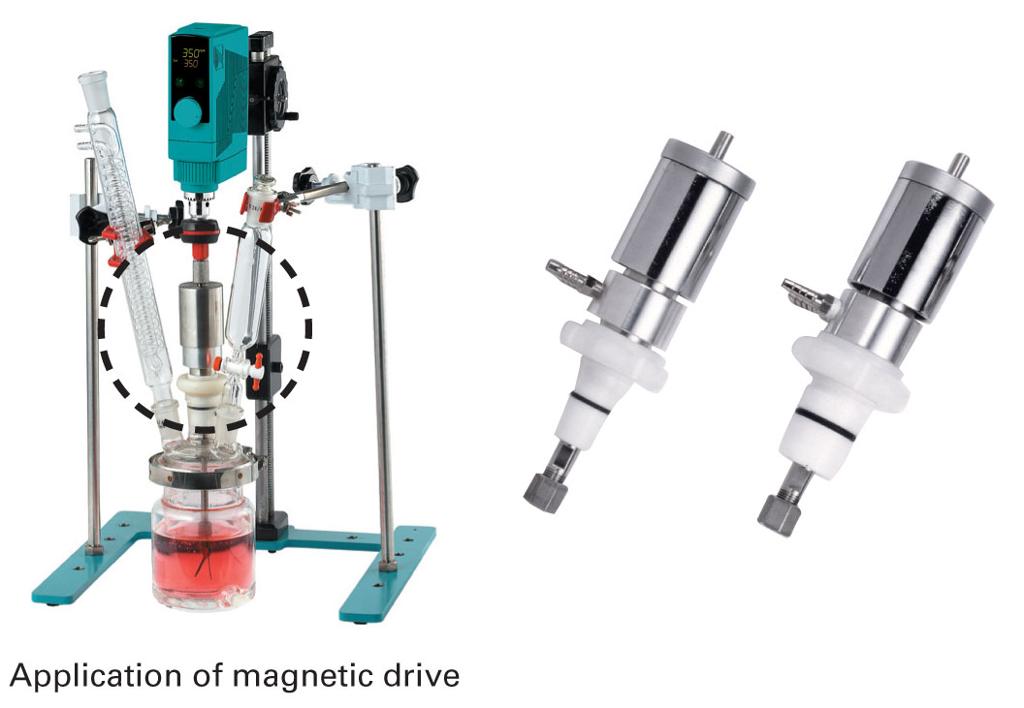

Magnetic drives are designed for agitating a fully vacuumed flask. Multi-functional easy to replace impeller.
Use of rare-earth elements which is Neodymium (Nd), Samarium (Sm-Co) magnet.
High-speed rpm, vibration free.
Specifically designed with permanent magnets which has a dynamic torque rating.

Small size and powerful rotating magnetic drive is useful both for laboratory and manufacturing applications.

Specifications

Model		MD-T6-24	MD-T6-29	MD-T6-34
Ground joint		24 / 40	29 / 42	34 / 45
Material	Body / Housing	SUS316L / CR-PLATE
Material	Bushing / Seal	PTFE / Viton
Driving	Vacuum	Max. 1×10-4 mmHg
	Pressure	Max. 5kg / cm2
	Temp	Max. 70℃ (without cooling), Max. 300℃ (with cooling)
Shaft dia. (Ø, mm / inch)		8 / 5/16
Cooling in/out dia. (Ø, mm / inch)		3.2 / 1/8
Dimension (Ø×L, mm / inch)		50×200 / 2x7.9
Net weight (kg / lbs)		1.02 / 2.25	1.04 / 2.29	1.08 / 2.38
Cat. No.		BEA511001	BEA511002	BEA511003
